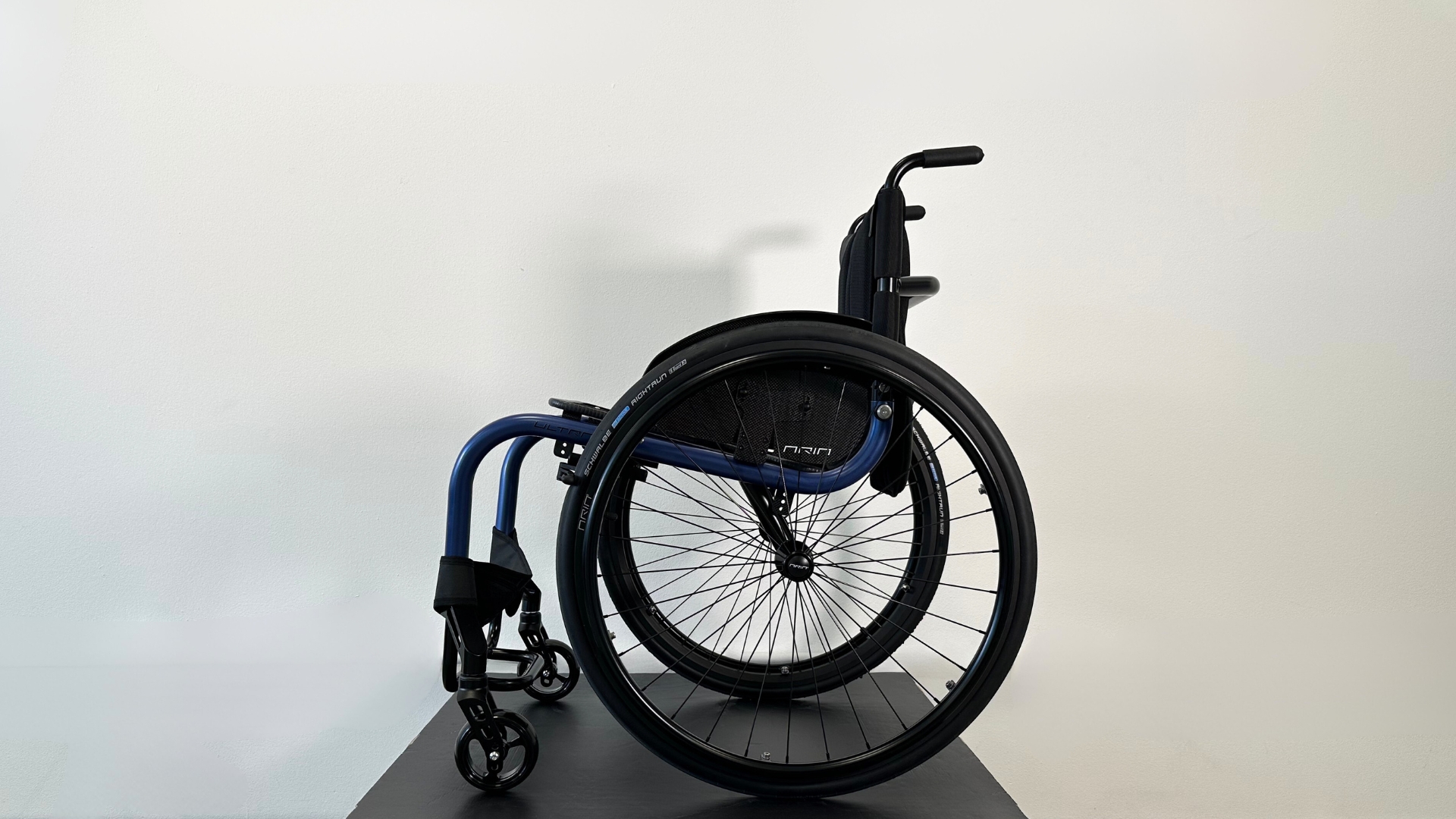

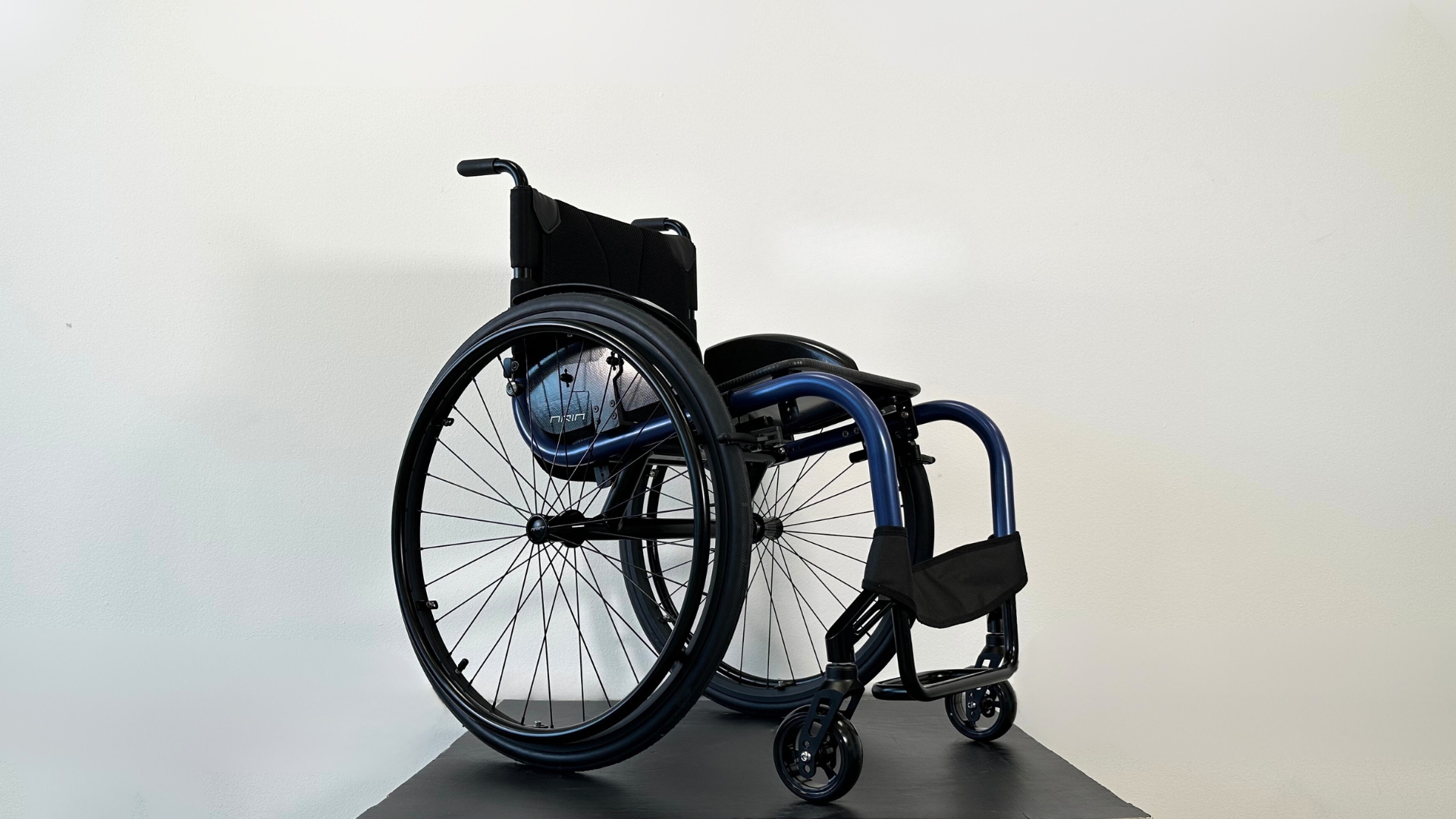

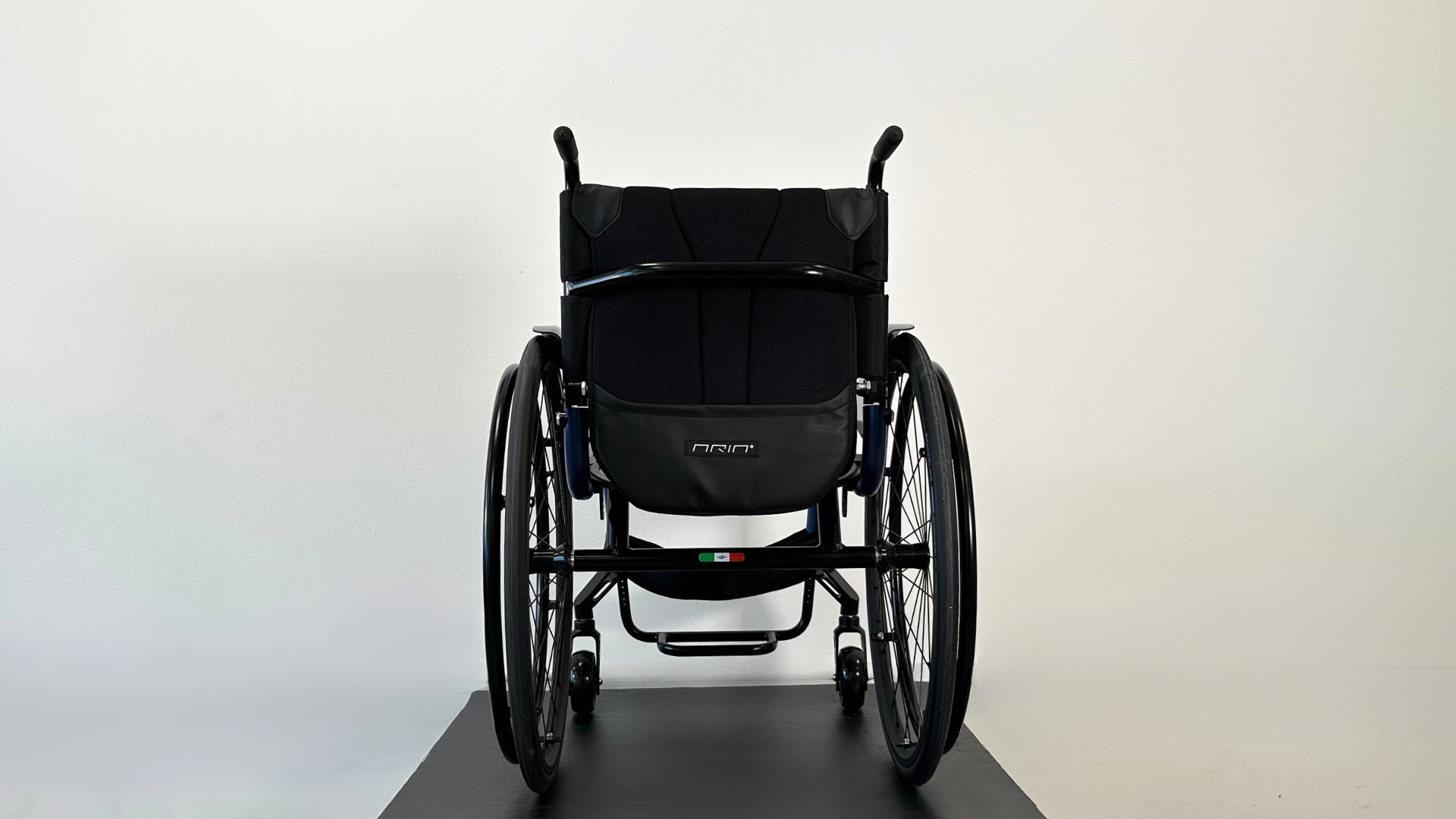

ULTRA SN1772

Year of production: 2025

Product code: ARIAUL_V24.R2

Seat width (SW): 400

Seat depth (SD): 420

Seat length (SL): 400

Seat to footrest (STF): 140

Camber Rear Wheels (CRW): 0

Center of Gravity (CG): 110

Frame color: Night Blue RAL 5026 (NB)

Frame type: Standard Frame (STDF)

Rear wheels axle: Black matte painted magnesium (AXMGSTDUL)

Seat height rear (SHR) - op.A: 400

Seat height front (SHF) - op.A: 490

Seat type: Carbon fiber seat pan with tilting system (CARBTS)

Backrest system: Folding backrest with adjustable angle (BKRUF1)

Backrest angle (BRA): 90

Backrest height (BRH): 360

Backrest type: Aria® tension straps backrest (BKRTT4)

Knee to heel length (KHL) - op.B: 380

Footrest: Lightweight tubular footplate (FOOTFU)

Code KITBR: Brakes kit consisting of:

Brakes support: Aluminium standard clamp (BRKASL2)

Brakes: Aria® scissor lock (BRKASL + BRKASR)

Code KITRW: Rear wheels kit consisting of:

Dimension: 24 inches

Type: Black Wheel with black hub and black spokes (RWHAG)

Handrim 24'': Black aluminium (HDRMB)

Tyre 24x1.00: Schwalbe Right Run - Black (WTSWR)

Code KITFC: Forks and front casters kit consisting of:

Forks: Aria® Double - Sided - black anodized aluminium (FRKDS2)

Front casters: 4 inches Black anodized aluminium caster (FRWH4)

Code SDGUL: Side guards kit consisting of:

Side guards: Carbon Fiber Fendered (CARB19)

Seat cushion: None

Push handles: Height adjustable push handles (PHY1)

Under seat bag / Handle: None

Calf band: Calf band, height 8 cm - black textile (CLFB8)

Owner's manual language: EN

Configuration price: 6802€
